About:

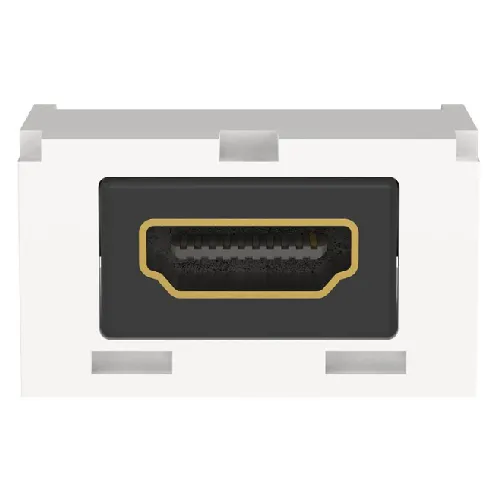

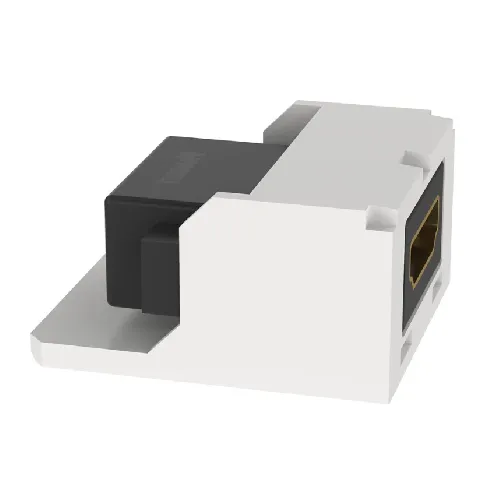

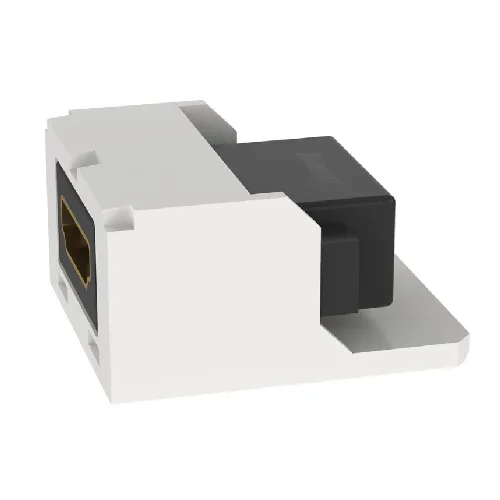

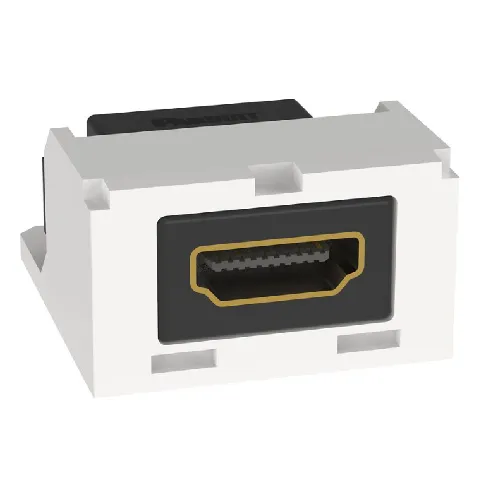

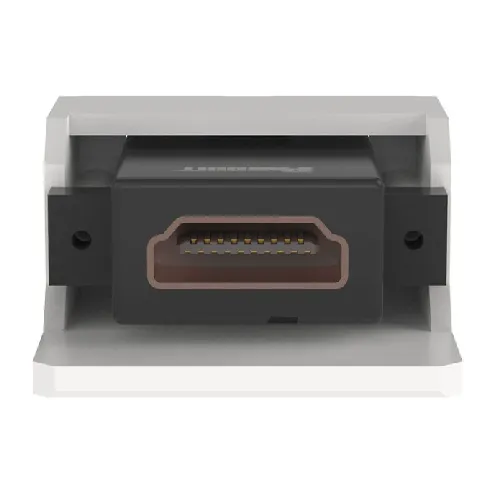

The 1.24x0.72 Mini-Com HDMI Coupler 2.0 Type A Module Pigtail ABS CMHDMITWH is a compact interface device designed to facilitate and extend HDMI connections. The 'pigtail' term implies it comes with a short cable attached, enhancing flexibility in connections. Made with ABS plastic, this coupler is durable and designed for optimal signal integrity.

Also Known As:

• HDMI Pigtail Coupler
• CMHDMITWH HDMI Extender
• Type A HDMI Connector with Pigtail

Common Applications:

• Professional audio/visual setups in studios and production houses.

• Commercial settings like offices and conference rooms for extended AV connectivity.

• Home entertainment systems to extend connections between audio-visual devices.

• Digital signage and display installations requiring extended HDMI connections.

Standards:

• HDMI 2.0 standards ensuring support for high-quality audio and video, increased frame rates, and 4K resolution.

• RoHS compliance for the restriction of specific hazardous materials.

• Standards related to ABS plastic ensuring it’s durable and resistant to various environmental factors.

Construction:

• Dimensions of 1.24x0.72 inches making it compact and easy to fit in various installation environments.

• Made with ABS plastic, enhancing its durability and resistance to wear and environmental factors.

• Designed to facilitate HDMI 2.0 Type A connections ensuring compatibility with a broad array of AV equipment.

Features:

• Enables HDMI cable extension, making it ideal for setups requiring longer cable distances while maintaining signal integrity.

• The compact design facilitates ease of installation and flexibility in a variety of application settings.

• Supports HDMI 2.0 for optimal audio and visual signal transmission, including 4K video.

• ABS construction offers a robust and durable casing, protecting the internal components and ensuring long-lasting performance.

Specification:
