Product Details
＋
Features Include

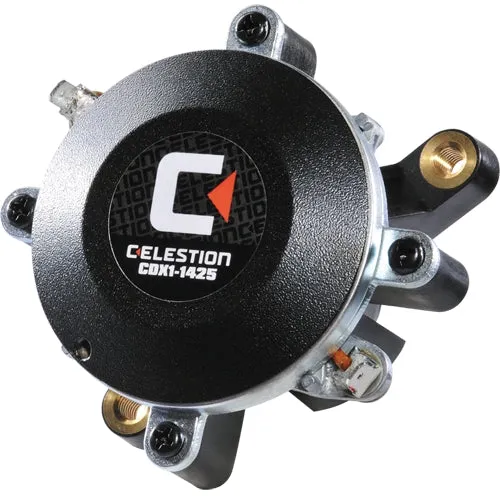

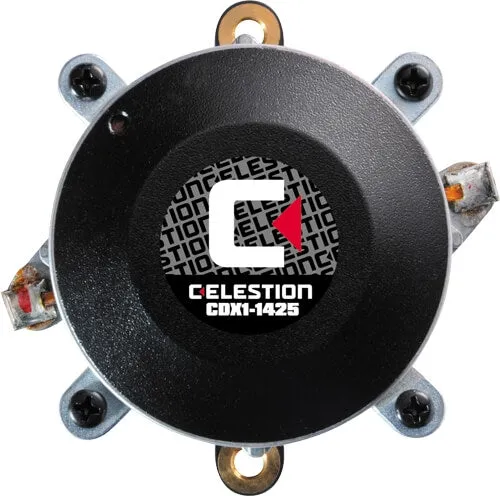

- 1" exit neodymium compression driver with 1.4" copper clad aluminium voice coil
- 25Wrms power handling (AES standard) and 108dB sensitivity
- Copper sleeve on pole reduces inductive rise for improved HF performance
- Ferrofluid in magnet gap prevents sensitivity loss through thermal compression
- Aluminium diaphragm combined with elastomer surround delivers lower distortion performance
- Finite Element Analysis (FEA) used to optimize both magnet and acoustic design
- Suitable for 2-way and 3-way systems, and line arrays
General Specifications
Power rating: 25Wrms
Continuous power rating: 50W
Nominal impedance: 8Ω
Sensitivity: 108dB
Frequency range: 2000-20,000Hz
Recommended min. crossover (12dB/oct): 2500Hz
Voice coil diameter: 35mm/1.4in
Voice coil material: Copper clad aluminium
Magnet type: Neodymium
Diaphragm material: Aluminium
Surround material: Elastomer
Mounting Information
Maximum width: 90mm/3.5in
Depth: 58mm/2.3in
Weight: 0.39kg/0.9lb
Fitting: Flange (2 x M6 holes on 76mm, 3.0in PCD)
Throat exit: 25.4mm/1in
Compatible Horns
H1-9040P, H1-7050 ‘No Bell’
