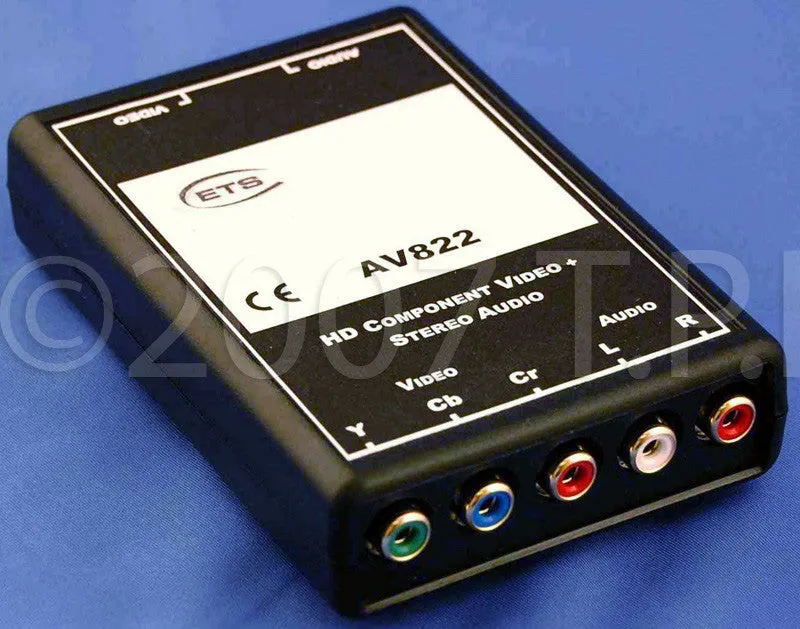

The ETS AV-822 is a High Definition Component Video Audio Balun for ease of use and consistent signal labeling in applications that utilize component video signals. Component video formats include RGB, YUV, YIQ and YCrCb.

High Definition Component Video Digital Audio Analog Stereo Audio IR or Data Pass Through is for high-end home and professional theaters that transmits signals from 480p to 1080p resolution video.

Features

• HDCVB Stereo Audio, (5) RCA jacks to (2) RJ45 jacks Video: pins 1,2,3,6,7 & 8 on RJ45 jack
• Send High Definition Component Video and Audio signals on UTP at distances of up to 500 ft
• Increased pixel resolution - up to 1080 pixels with a band-width of 270 MHz
• Passive unit - no power required
• IR Information pass-through
• Meets FCC Class A
• Superior signal balancing, lower crosstalk, less ingress and ghosting
• May utilize existing telecom wiring
• Sturdy compact plastic case
• Made in USA. 100% QA
