The ETS PA830 Series are the Balanced Line™ Digital Audio Splitters and Digital Audio Splitter Panels. These products are expressly designed for the digital audio market. Used only for balanced 110 Ohm signals, these units accommodate signal levels to 10V. Since proper impedance is maintained, the splitters do not have to be symmetrically applied.

Due to careful specification and minimal signal modification, these units may be cascaded reducing transmitted signal power by 3 dB at each stage.

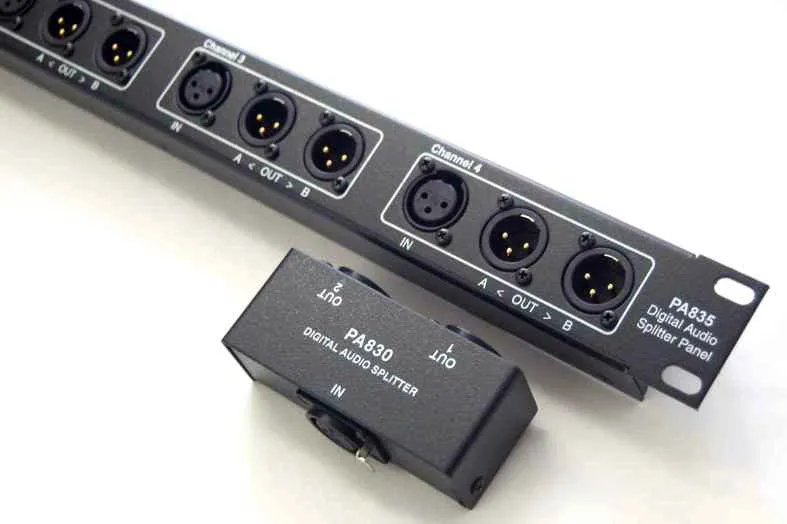

New to the product line is the PA835 that is a panel-mounted splitter in 4 channel version.

Features

• Devices are used for splitting AES/EBU digital audio signals
• Eliminates the need for a distribution amplifier in many applications
• Superb impedance matching
• Rugged metal cases and chassis
• Made in USA. 100% QA.

Specifications

• Bandwidth: 200 kHz to 10 MHz
• Connectors: (3) XLR per channel
• Impedance: 110 Ohm
• Insertion Loss: < 0.1 dB
• Impedance Match: /- 2%
• Output to Output Isolation: 40 dB
• Max Signal: 10 VP-P
• Dimensions: 94mm x 51mm x 30mm (PA830, 832)
  PA835 : 1RU x 35mm deep
• Net Weight: 0.15 kg, (PA835- 0.5 kg)

PA830 AES/EBU Splitter, F-XLR to (2) M-XLR
PA832AES/EBU Splitter, M-XLR to (2) F-XLR
PA835 AES/EBU Splitter Panel, 4 channels of PA830, 1RU
