Product Details
＋
Highlights

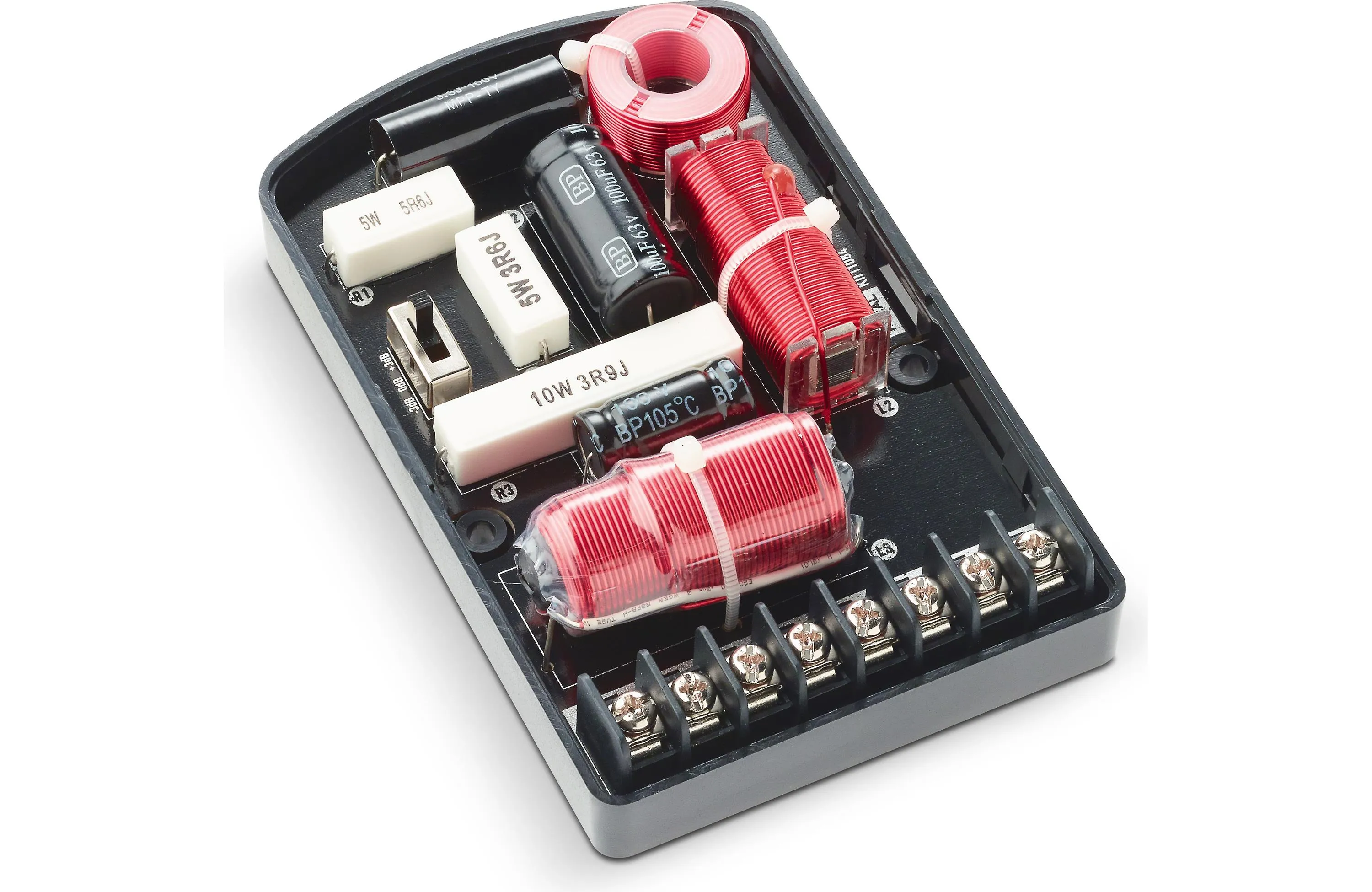

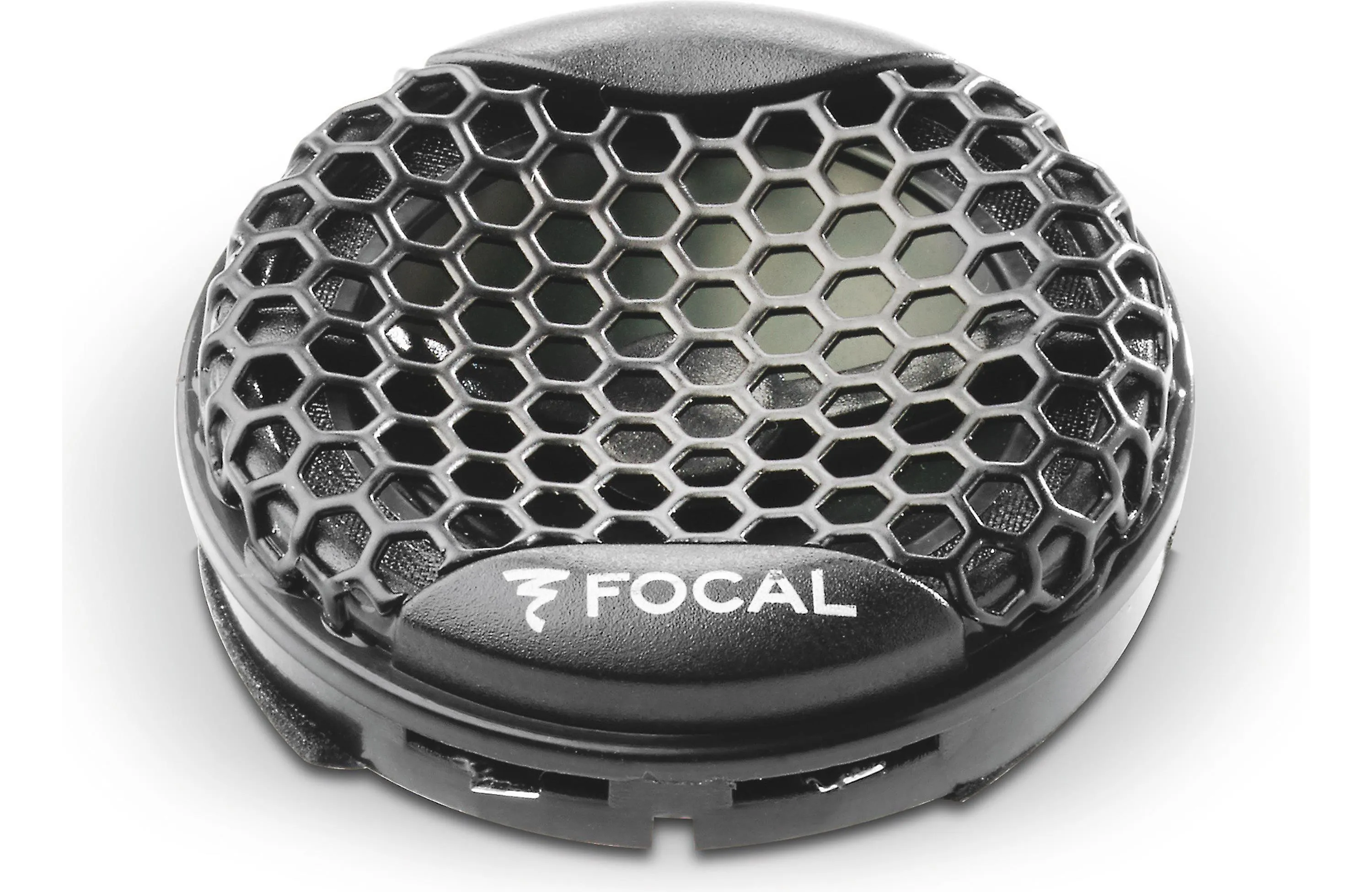

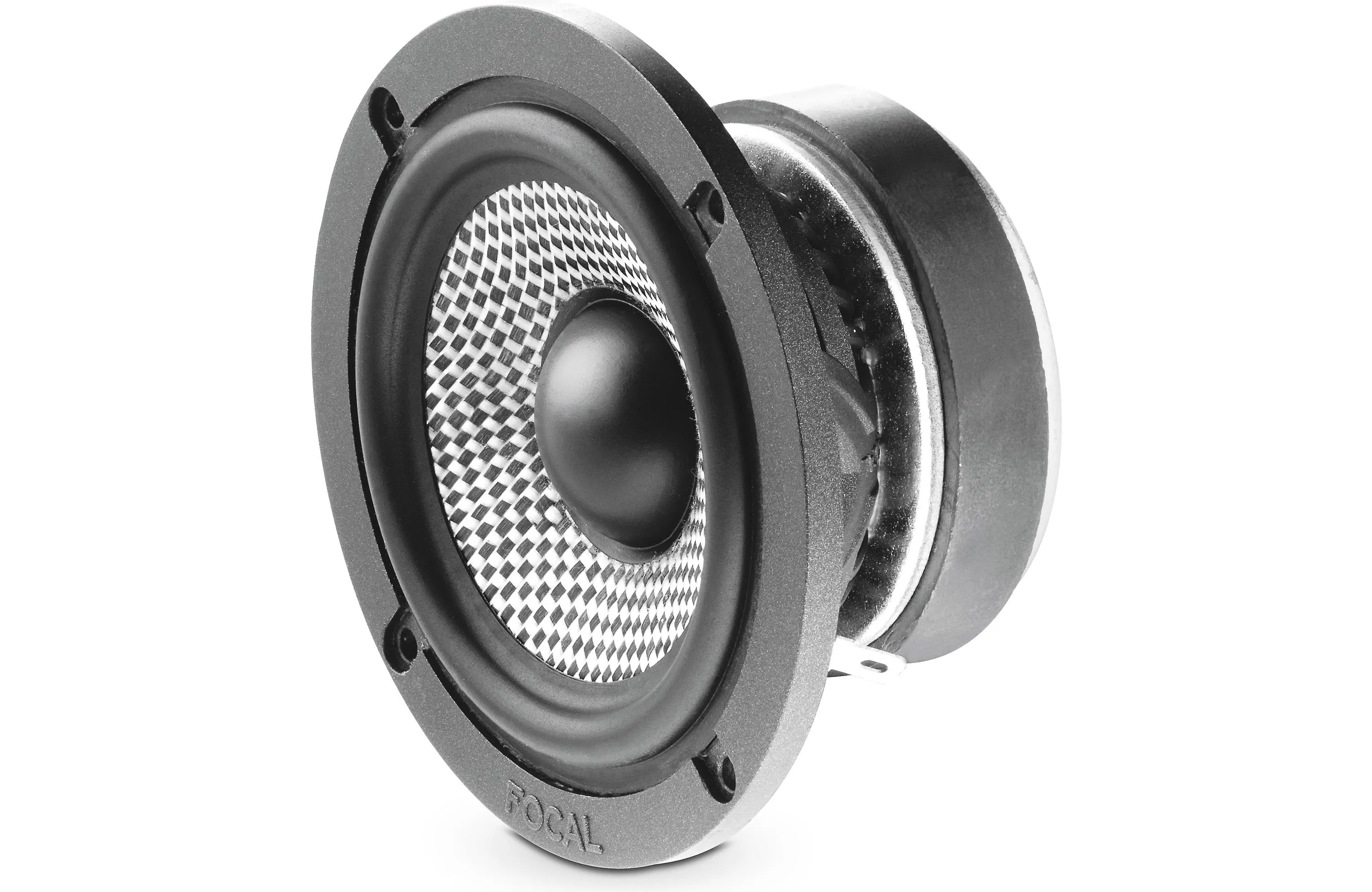

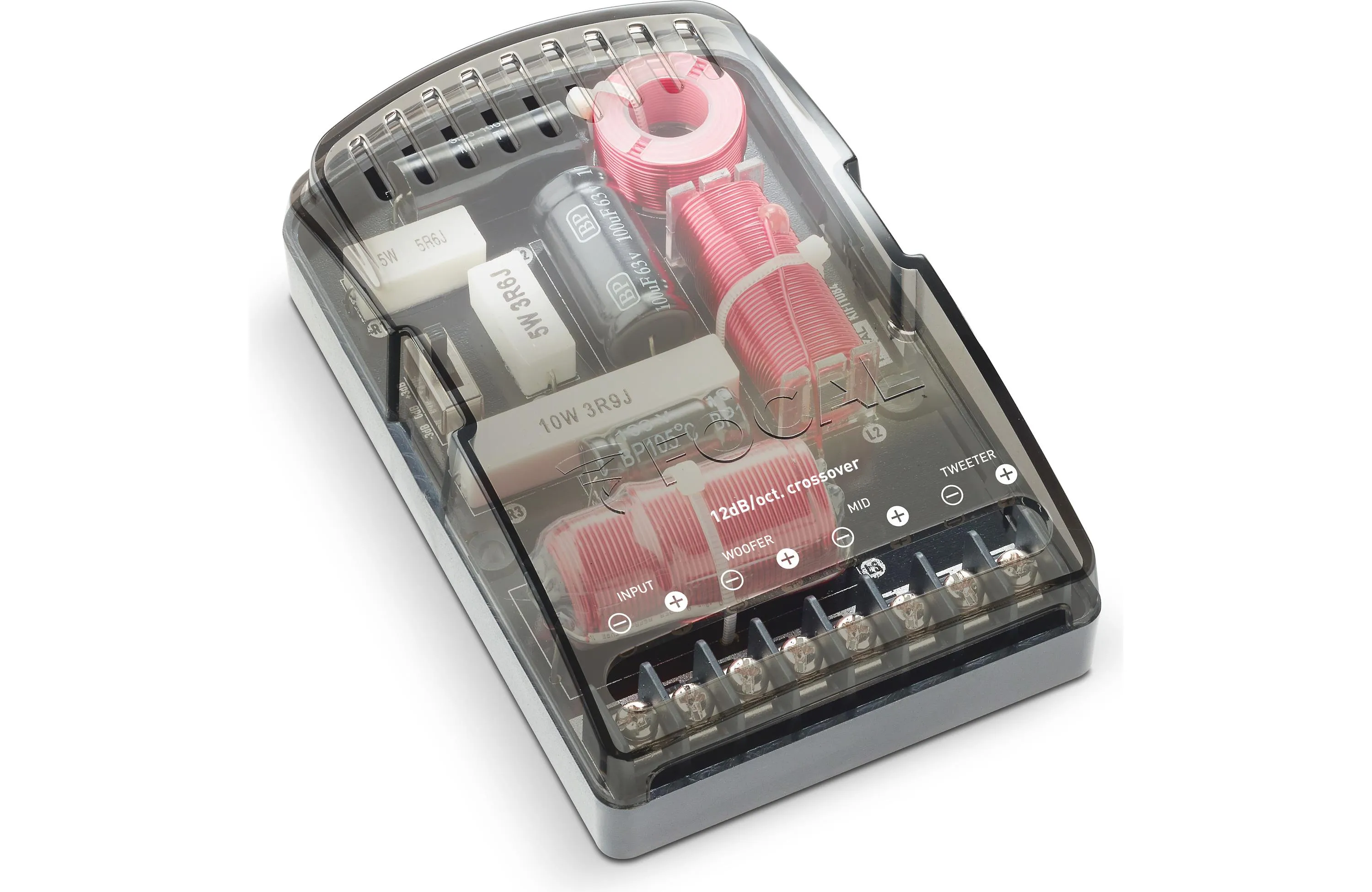

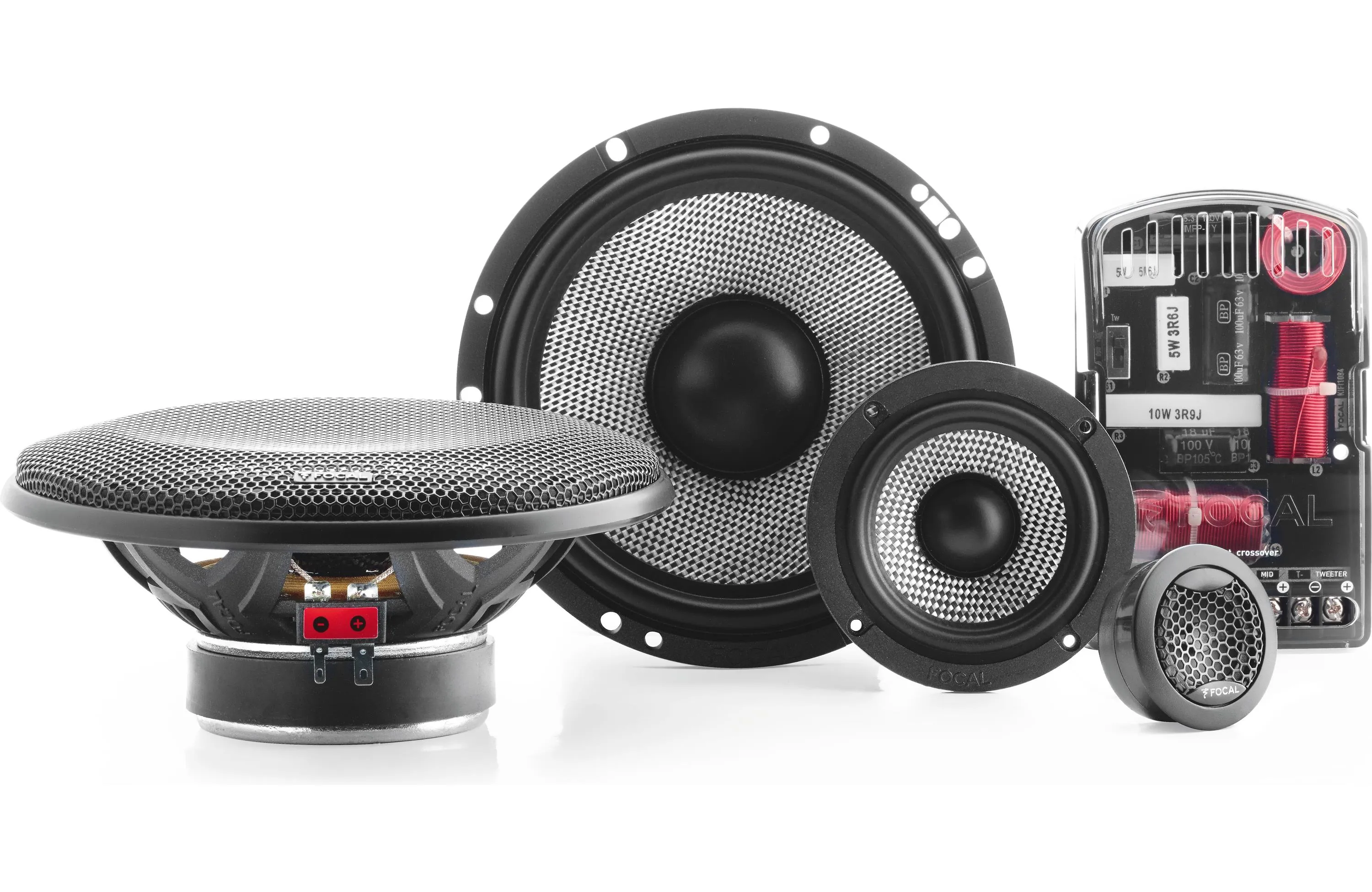

- Two 6-1/2" DFS woofers, two 3" midrange drivers, two aluminum TN43 inverted-dome tweeters, and two external crossovers
- 3-position adjustable tweeter level
- Non-resonant ABS/fiberglass woofer basket

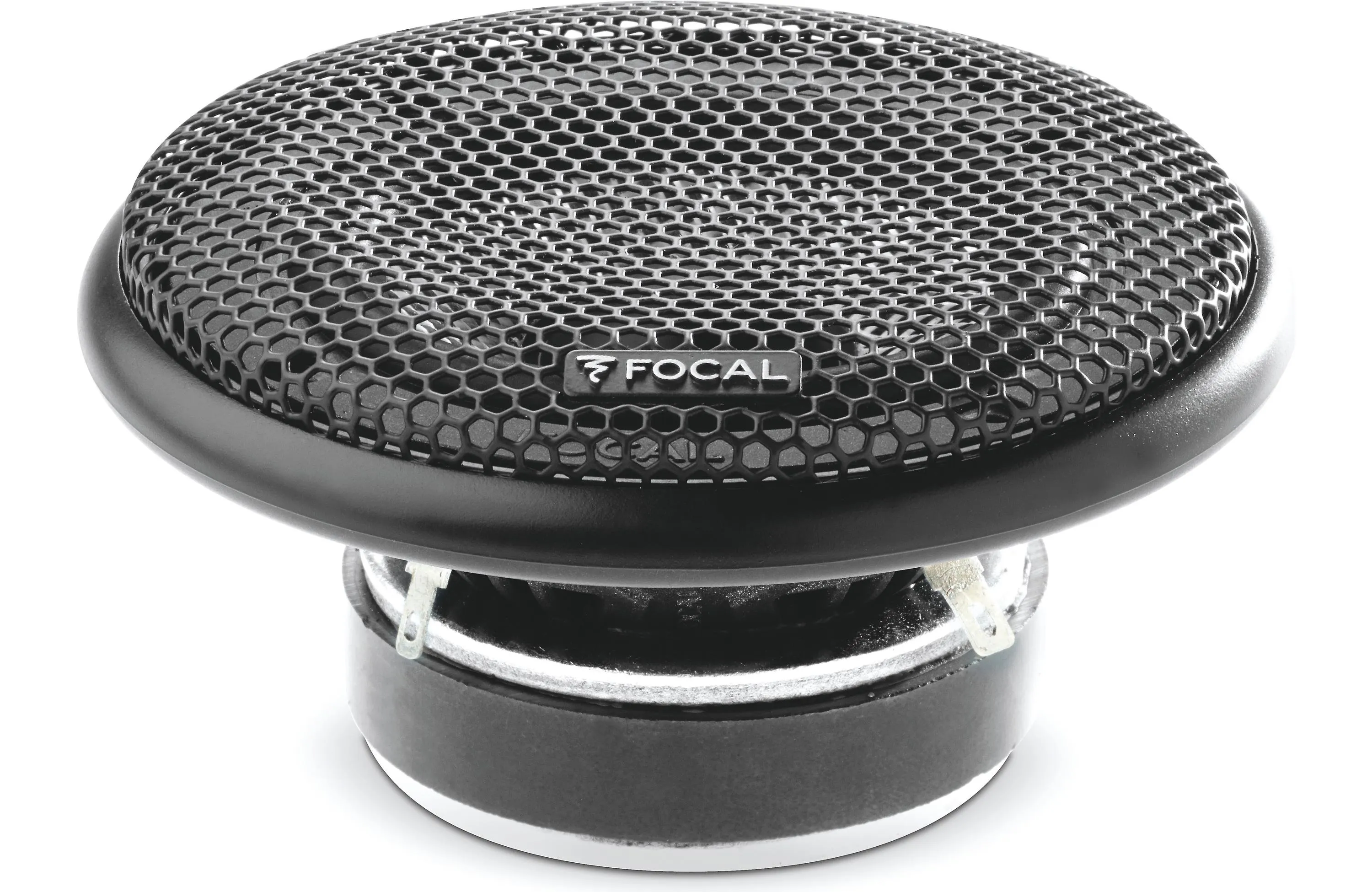

- Wire mesh grilles included
Features

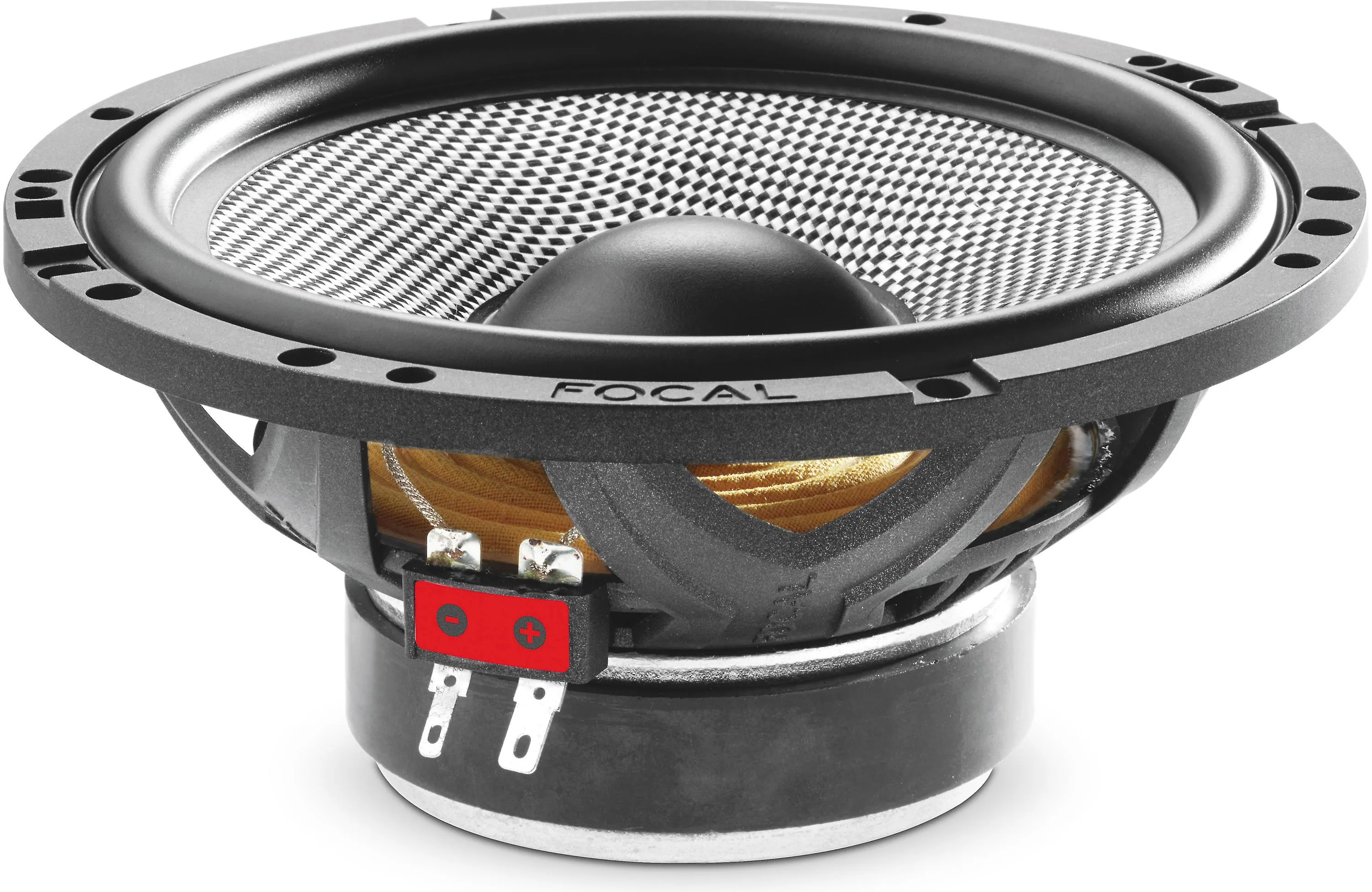

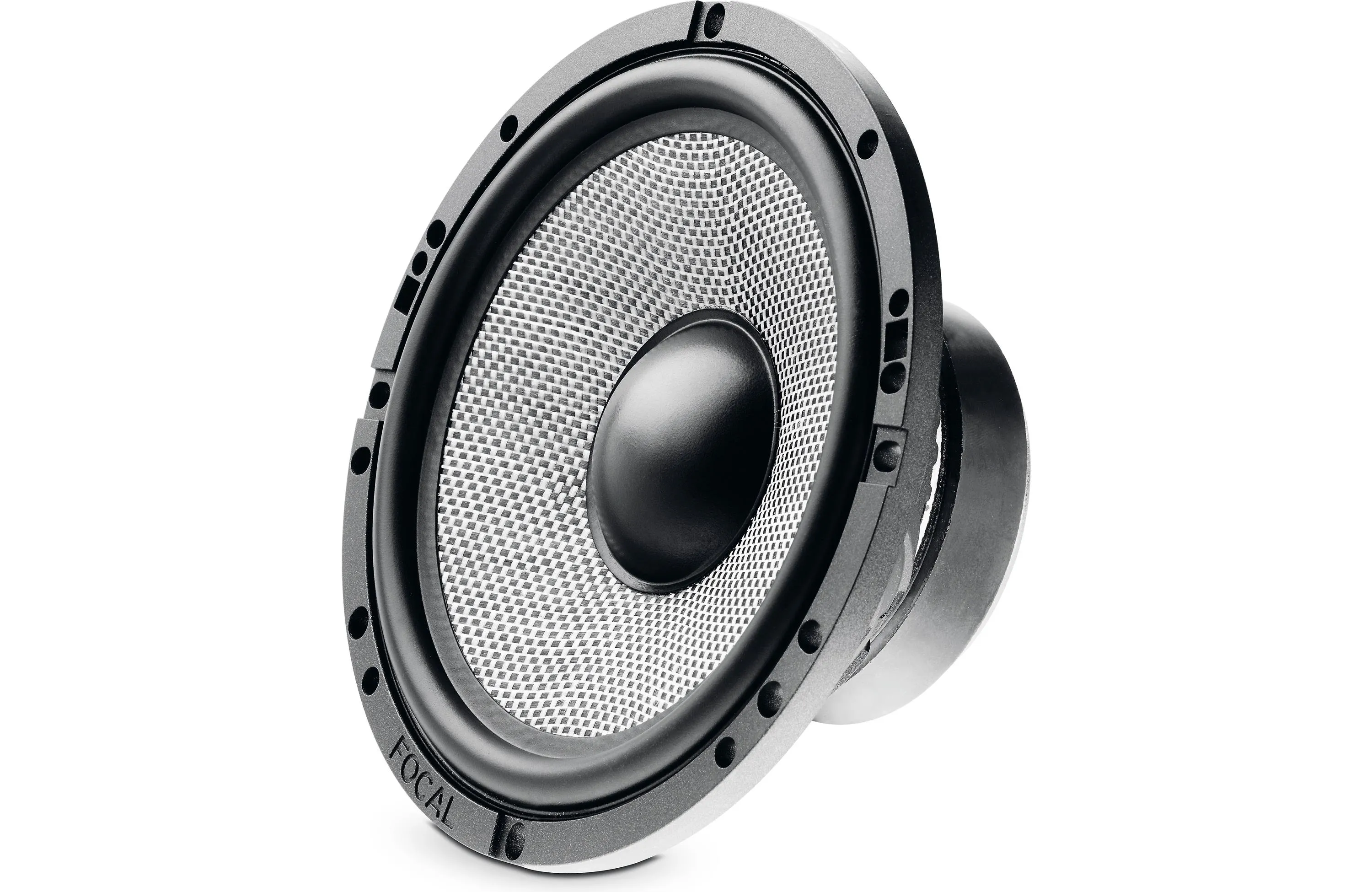

Cone Material: The Dual Fiberglass Structure Membrane (DFS) is a light, rigid, woven glass fiber woofer cone. The butyl rubber surround is resistant to ultraviolet rays, temperature extremes, and humidity to add to the speaker's reliability and longevity.

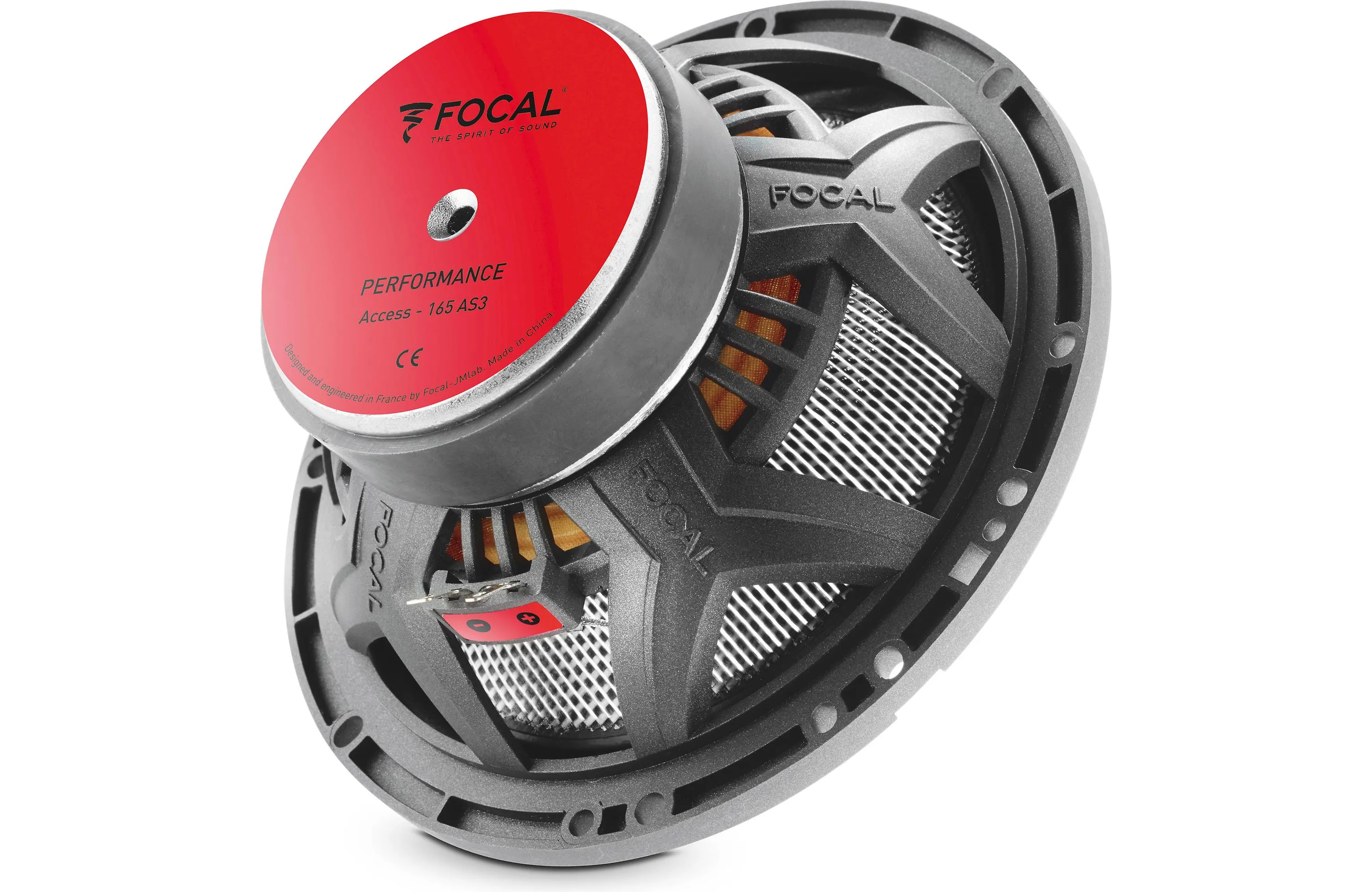

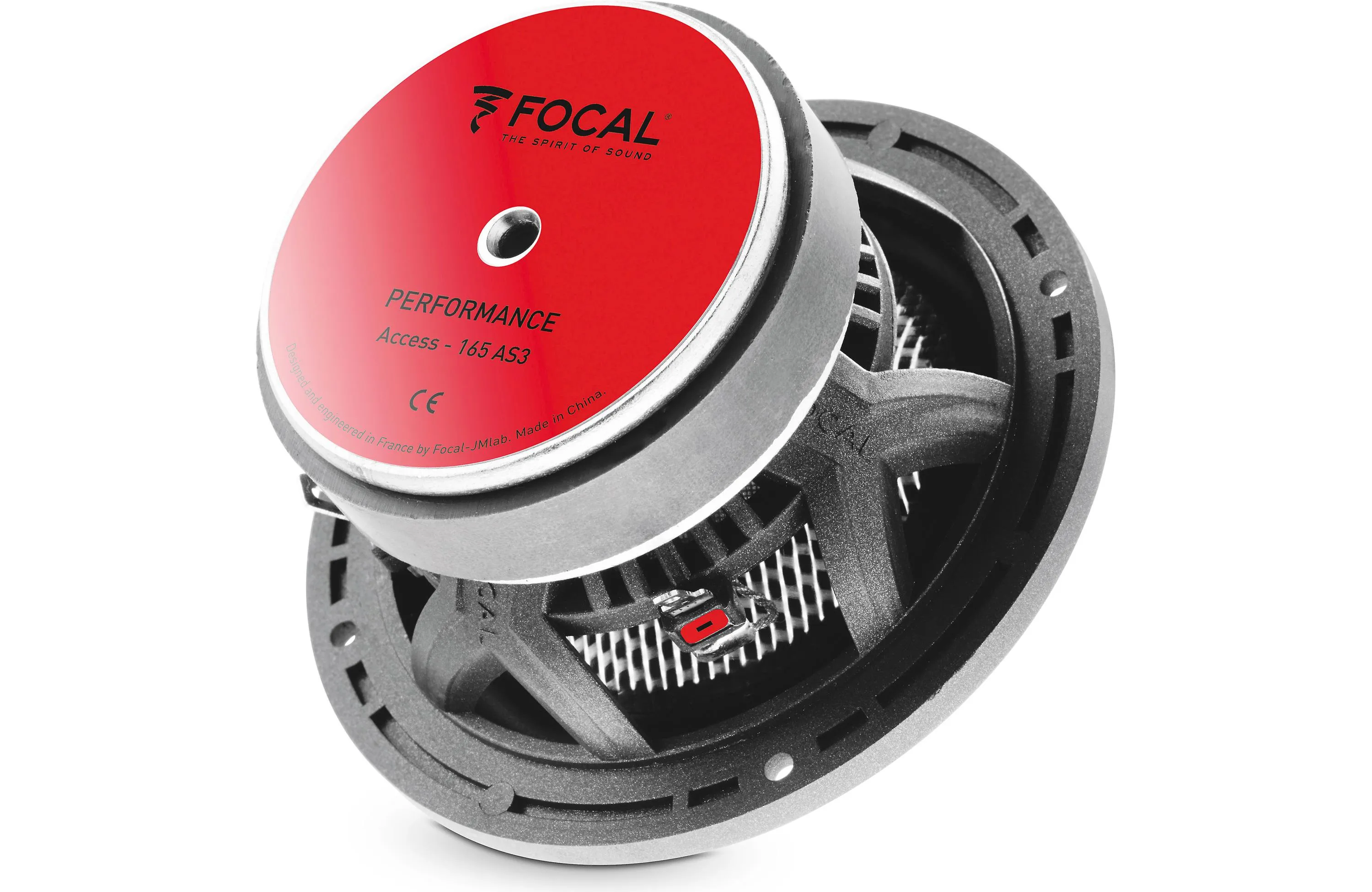

Basket: The woofer features an ABS basket reinforced with 20% fiberglass.
Voice Coil: The voice coil is wound around a 1" diameter low-mass Kapton former, ensuring no coil deformation.
Size Classification Note: Some manufacturers, including Focal, call this size speaker a 6-1/2".
| Speaker Size | 6.5" |
| Design | 3-Way |

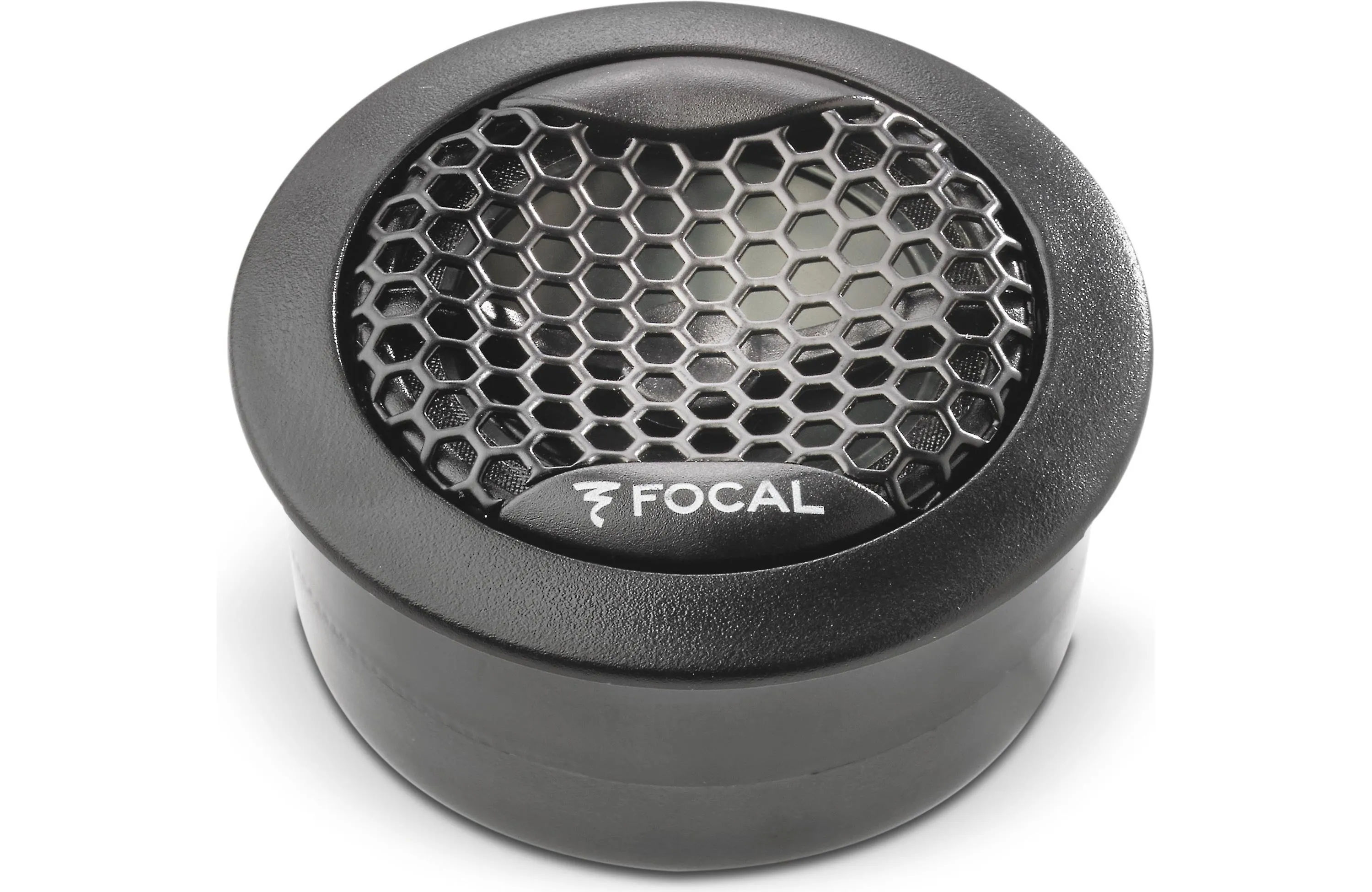

| Tweeter Design | Inverted Dome |
| Impedance | 4 Ohms |
| Tweeter Composition | Aluminum / Magnesium |
| Woofer Composition | DFS |
| Woofer Surround | Butyl Rubber |
Specifications
| Sensitivity (1W at 1 meter) | 85.98 |
| Sensitivity at 2.83 volts | 90 |
| Frequency Response | 55 - 20k Hz |
| Minimum RMS Wattage | 2 |
| Maximum RMS Wattage | 80 |
| Peak Power Handling (Watts) | 160 |
| Top-mount Depth | 2 ⅝" |
| Cutout Diameter | 5 ⁹⁄₁₆" |
| Mounting Height | 0.358" |
