Product Details
＋
Used on Kinney Rotary Piston KT850D

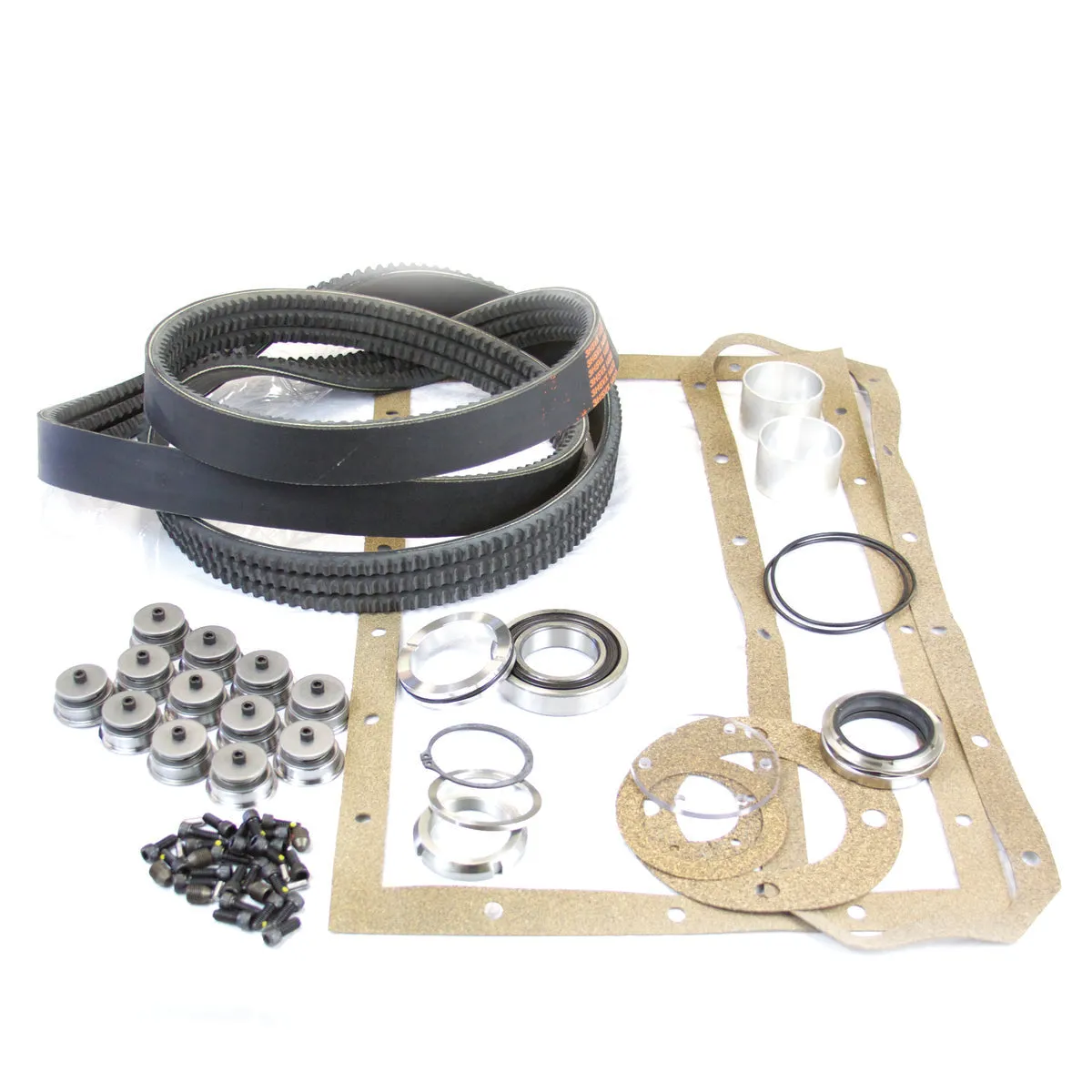

Major Maintenance Kit includes; discharge Valve, shaft seal, gaskets, O-rings, sight glass, bushings, bearings, and other components for a complete overhaul.
General product classifications
| Brand | Kinney |
| Family | Rotary Piston |
| Pump models | KT850D |
| Category | Repair Kits |
| Subcategory | Maintenance Kits |
| Country of origin | US |
| Manual page | KINNEY-62 |
| PART NUMBER | DESCRIPTION | QUANTITY |
|---|---|---|
| 050245 | O-ring, 110.72 x 3.53 mm - Buna, Part# 050245 | 2 |
| 051153 | V-Belt, Kinney, Rotary Piston, KT850C, KT850D, Part# 51153 | 1 |
| 052469 | Cap Screw - Hex Head, Kinney, Rotary Piston, KT850C, KT500C, Part# 52469 | 24 |
| 054108 | Bearing, Sleeve, Kinney, Rotary Piston, KT850C, KT850D, Part# 54108 | 2 |
| 054100 | Bearing Locknut, N-11, Kinney, Rotary Piston, KT850C, KT850D, Part# 54100 | 1 |
| 054107 | Ball Bearing - 55 mm, Kinney, Rotary Piston, Part# 054107 | 1 |
| 064035 | Retaining ring, External, Kinney, Rotary Piston, KT850C, KT850D, Part# 64035 | 1 |
| 065110 | Shaft Seal Seat, Kinney, Rotary Piston, KT850C, KT850D, Part# 65110 | 1 |
| 065213 | Shaft Seal - Head Assembly, Kinney, Rotary Piston, KT850D, Part# 65213 | 1 |
| 066161 | Discharge Valve Assembly | 12 |
| 802505 | Set Screw, Kinney, Rotary Piston, KT850C, KT500C, Part# 802505 | 5 |
| 804192 | Oil Sight Glass, Plexiglas, Kinney, Rotary Piston, Part# 804192 | 1 |
| 804193 | Sight Glass Gasket, Kinney, Rotary Piston, KT850C, KT500C, Part# 804193 | 1 |
| 807461 | Separator Cover Gasket, Kinney, Rotary Piston, KT850C, KT850D, Part# 807461 | 1 |
| 808473 | Valve Deck Cover Gasket, Kinney, Rotary Piston, KT850C, KT850D, Part# 808473 | 1 |
| 807559 | Flange Gasket, Kinney, Rotary Piston, KT850C, KT850D, Part# 807559 | 1 |
| 808391 | Oil pump Gasket, Kinney, Rotary Piston, KT850C, KT850D, Part# 808391 | 1 |
| 802090 | Ring SS, Backup, Kinney, Rotary Piston, KT850C, KT850D, Part# 802090 | 1 |
| 807460 | Cylinder/Separator Gasket, Kinney, Rotary Piston, KT850D, Part# 807460 | 1 |
| 807561 | Bottom Plate Gasket, Kinney, Rotary Piston, KT850D, Part# 807561 | 1 |
| 802694 | Center Wall Locking Pin, Kinney, Rotary Piston, Part# 802694 | 5 |
