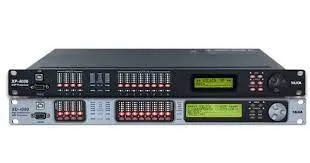

The Legacy Wavelaunch Processor is at the heart of many Legacy systems. These powerful digital signal processors feature high-quality AD/DA conversion and multiple inputs and outputs to integrate subwoofers and surround speakers. They are used as the crossover in the award-winning Whisper XDS and Aeris systems and provide parametric and graphic EQ for individual driver sections as well as the entire speaker.

Specifications

Processor (DSP): 40-bit Floating Point

Analog Converters: Super Performance 24-bit

No. of Programs: 8 per I/O

Graphic EQ: 31 Band

Filters: Butterworth, Linkwitz-Riley & Bessel

Connectors: 4 XLR In, 8 XLR Out, USB Type B

Dynamic Range: 115 dB (unweighted)

Distortion: 0.002% (1kHz @ 4dBu)

Frequency Response (Hz, /- .1 dB): 20 to 30 kHz

Dimensions (HxWxD, inches): 1.75 x 19 x 9

Weight: 10 lbs

Shipped Weight:  10 lbs
