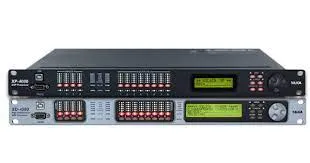

The Legacy Wavelaunch Processor is at the heart of many Legacy systems. These powerful digital signal processors feature high quality AD/DA conversion and multiple inputs and outputs to integrate subwoofers and surround speakers. They are used as the crossover in the award winning Whisper XDS and Aeris system, and provide parametric and graphic EQ for individual driver sections as well as the entire speaker. They run special Legacy algorithms developed to offer configuration options and to maximize the performance of Legacy speaker systems.

Specifications

Processor (DSP): 40-Bit Floating Point

Analog Converters: Super Performance 24-bit

No. of Programs: 8 per I/O

Graphic EQ: 31 Band

Filters: Butterworth, Linkwitz-Riley & Bessel

Connectors: 2 XLR In, 8 XLR Out, USB Type B

Dynamic Range: 115 dB (unweighted)

Distortion: 0.002% (1kHz @ 4dBu)

Frequency Response (Hz, /- .1 dB): 20 to 30 kHz

Dimensions (HxWxD, inches): 1.75 x 19 x 9

Weight: 10 lbs

Shipped Weight:  10 lbs
