About:

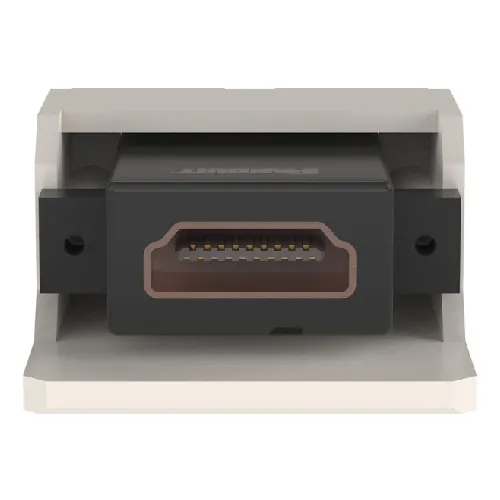

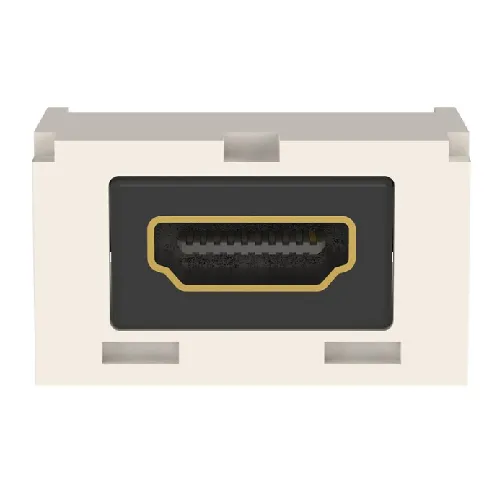

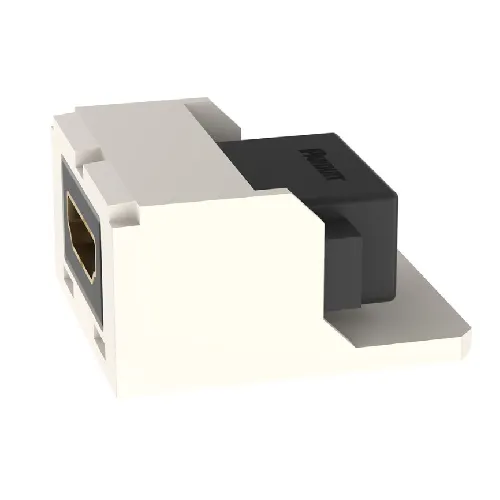

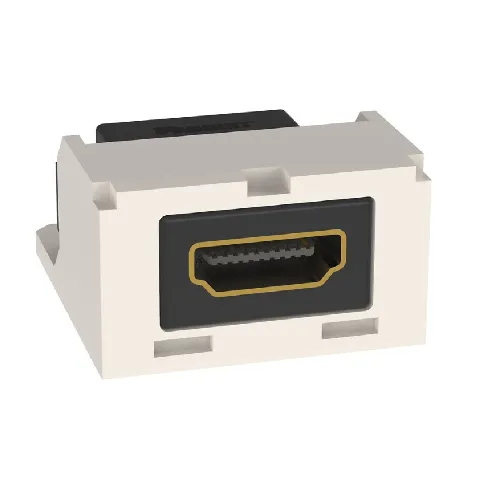

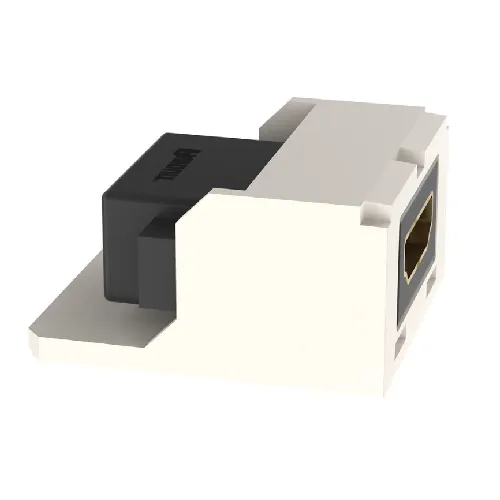

The 1.24x0.72 Mini-Com HDMI Coupler 2.0 Type A Module ABS CMHDMIIW is a specialized device designed to extend HDMI connections by joining two HDMI cables together. With its compact size and adherence to HDMI 2.0 standards, this coupler is versatile and ensures that high-quality audio and video signals are maintained over extended cable lengths. The ABS construction ensures durability and resistance to wear.

Also Known As:

• Compact HDMI 2.0 Coupler
• CMHDMIIW HDMI Extender
• Type A HDMI Connector Module

Common Applications:

• Home entertainment systems to extend connections between audio-visual devices.

• Commercial settings like offices and conference rooms for extended AV connectivity.

• Digital signage and display installations requiring extended HDMI connections.

• Professional audio/visual setups in studios and production houses.

Standards:

• HDMI 2.0 standards ensuring support for high-quality audio and video, increased frame rates, and 4K resolution.

• RoHS compliance for the restriction of specific hazardous materials.

• Standards related to ABS plastic ensuring it’s durable and resistant to various environmental factors.

Construction:

• Dimensions of 1.24x0.72 inches making it compact and easy to fit in various installation environments.

• Made with ABS plastic, enhancing its durability and resistance to wear and environmental factors.

• Designed to facilitate HDMI 2.0 Type A connections ensuring compatibility with a broad array of AV equipment.

Features:

• Enables HDMI cable extension, making it ideal for setups requiring longer cable distances while maintaining signal integrity.

• The compact design facilitates ease of installation and flexibility in a variety of application settings.

• Supports HDMI 2.0 for optimal audio and visual signal transmission, including 4K video.

• ABS construction offers a robust and durable casing, protecting the internal components and ensuring long-lasting performance.

Specification:
