Product Details
＋

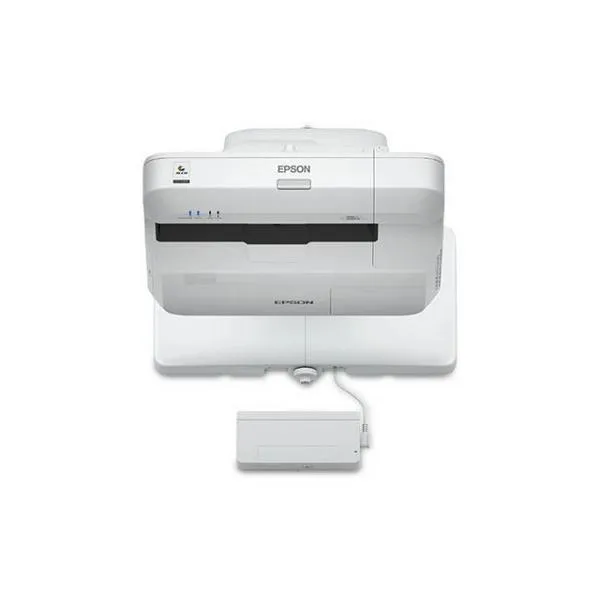

Transform your classroom into a collaborative learning space with the BrightLink 696Ui touch-enabled, full HD WUXGA Ultra short-throw interactive display. Featuring a powerful 3,800 Lumens of color and White brightness, the 696Ui delivers dynamic images up to 100" - from as close as 10" away. Turn almost any wall or existing whiteboard into an interactive workspace with pen- and touch-based interactivity - up to two pens or six users at one time. Power Consumption: 100 – 240 V ±10% 50/60 Hz 425 W2.9 W Standby (Communication On)
Specifications
- White Brightness:3,800 Lumens
- Color Brightness:3,800 Lumens
- Eco-Mode:2,900 Lumens
- CLO (eco):2,900 Lumens
- Contrast:16,000:1
- Dynamic Iris:Yes
- Resolution:1920x1200
- Native Aspect Ratio:16:10 (WUXGA)
- Color Processing:10-bit
- Projector Size:5.10" x 18.70" x 17.60"
- Weight:18.3 lbs
- Video Modes:720p, 1080i, 1080p/60, 1080p/24, 1080p/30, 1080p/50, 576i, 576p, 480p, 480i
- Data Modes:MAX 1920x1200
- Lamp Life:5,000 hours / 10,000 hours (eco)
- Lamp Type:UHELamp
- Wattage:267 Watts
- Lamp Quantity:1
- Lamp Code:ELPLP92
- Display Type:0.67" 3 LCD
- Std. Lens:Fixed Focal LengthStd.
- Lens Focus:Manual
- Optional Lenses:NoLens
- Shift:No
- Throw Distance:1.2' - 2.0'
- Image Size:59.99" - 100.07"
- Throw Ratio:0.28:1
- Projector Placement:For a
- diagonal screen, place the projector lens 1'-12" from the screen.
- Digital Zoom:Yes
- Digital Keystone:Horizontal & Vertical
- Audible Noise:37.0 dB / 30.0 dB (eco)
- Speakers:16.0 W Mono
- TCO Certified:Yes
- Max Power:425 Watts
- Voltage:100V - 240V
- Connection Panel:Composite (RCA), VGA In (Dsub-15pin), HDMI, HDMI, Audio Out (Mini Jack), Network (RJ-45), USB, USB, USB, RS232 (DB-9pin), HDMI (MHL), Audio In (Mini Jack), Audio In (Mini Jack), VGA Out (Dsub-15pin)
